ROUTEJADE
Advanced Lithium-Ion Battery Solutions
As an authorized partner of Routejade, we offer cutting-edge lithium-ion battery technologies tailored to meet the diverse needs of various industries. Routejade, a leader in battery innovation, specializes in high-performance cells that deliver superior energy density, safety, and design flexibility.
Product Portfolio
High C-rate polymer batteries optimized for high-power applications, including medical devices, RC helicopters, and industrial equipment.
Flexible lithium-ion polymer batteries offering a wide range of capacities and voltages, suitable for compact and lightweight applications.
Why Choose Routejade?
Innovative Technology
Proprietary encapsulation and stack technology providing flexible solutions for lithium-ion batteries.
High Energy Density
Products with energy densities over 300Wh/L, ensuring efficient power delivery.
Design Flexibility
Ability to accommodate various shapes and sizes, enabling customized solutions.
Safety and Reliability
Batteries designed to meet stringent safety standards, suitable for a wide range of applications.

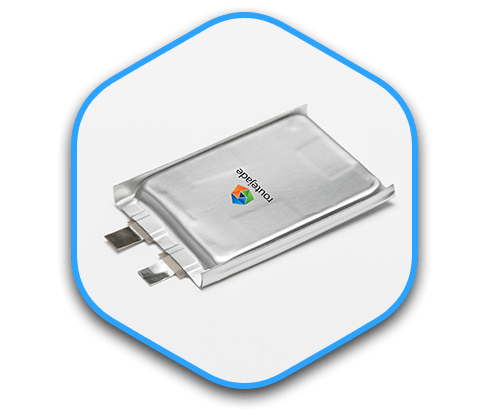

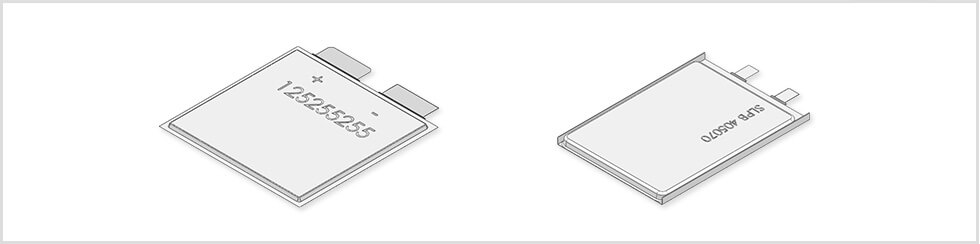

High C rate Polymer Battery
SLPB is a High C-Rate product optimized for high power applications.
SLPB
Superior Lithium-ion Polymer Battery
SLPB is a High C-Rate product optimized for high power applications. We provide a wide range of options up to 10Ah, and even under 1Ah, with 15~30C. And they have been applied to Medical Device, RC Helicopter, industrial equipment, or anywhere electricity needed around the world.
SLPB
| Model | Capacity (Ah) | Voltage (V) | Weight /Max. | Dimensions(mm) | Max Discharge Rate(C) | |||
|---|---|---|---|---|---|---|---|---|
| T | W | L | Continuous | Pulse | ||||
| SLPB483459HP1 | 0.82Ah | 3.68 | 18.5g | 4.8 | 34 | 60 | 15 | 22.5 |
| SLPB593459HP1 | 1.05Ah | 3.68 | 23g | 5.9 | 34 | 60 | 15 | 22.5 |
| SLPB753870HP2 | 1.65Ah | 3.68 | 39g | 7.5 | 38.5 | 73 | 20 | 30 |
| SLPB7543128HP2 | 3.6Ah | 3.68 | 82g | 7.5 | 43 | 128 | 20 | 30 |
| SLPB784374HP1 | 2.2Ah | 3.68 | 48g | 7.8 | 43 | 75 | 15 | 22.5 |
| SLPB11543140HP3 | 5.3Ah | 3.68 | 129g | 11.3 | 43.5 | 140 | 30 | 45 |
| SLPB356495HE | 2.5Ah | 3.68 | 45g | 3.6 | 64 | 95.5 | 2 | 5 |
| SLPB526495HE | 3.7Ah | 3.68 | 65g | 5.2 | 64 | 95.5 | 2 | 5 |
| SLPB796495HE | 5.9Ah | 3.68 | 100g | 7.9 | 64 | 97 | 2 | 5 |
| SLPB70106100HE | 10.0Ah | 3.68 | 165g | 7.1 | 106 | 102 | 2 | 5 |
| SLPB75106100HP | 9.0Ah | 3.68 | 167g | 7.5 | 106 | 102 | 5 | 10 |
| SLPB98106100HE | 12.5Ah | 3.68 | 220g | 9.9 | 106 | 103 | 2 | 5 |

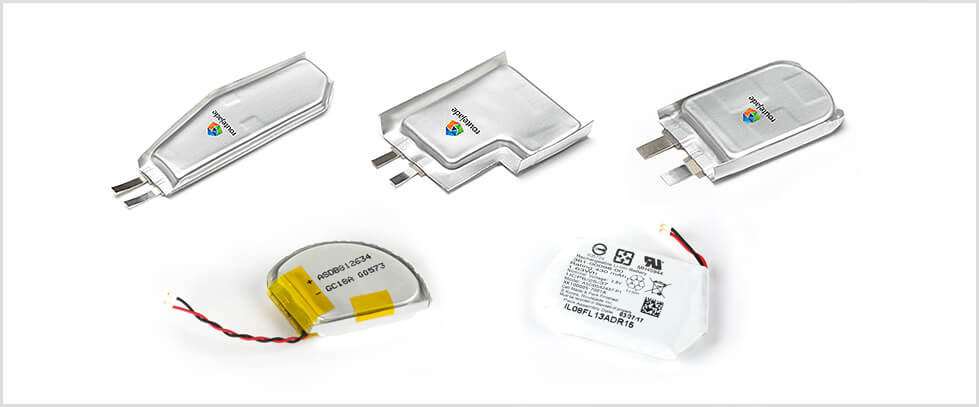

ASDB
Asymmetric Designed Battery
With battery design which utilizes even asymmetric edge and/or corner, we minimize the dead space and have a superial capacity. We provide the optimized energy solution to our customers.
ASDB (Pouch battery series)
| Model | Capacity (mAh) | Voltage (V) | Weight /Max. | Dimensions(mm) | ||
|---|---|---|---|---|---|---|
| T | W | L | ||||
| ASDB331426 | 76 | 3.8 | 2.5g | 2.9 | 15.0 | 24.0 |
| ASDB351520 | 91 | 3.83 | 1.9g | 3.4 | 15.5 | 20.0 |
| ASDB371828 | 160 | 3.8 | 3.2g | 3.4 | 18.5 | 28.4 |
| ASDB402334 | 270 | 3.8 | 5.3g | 3.6 | 23.0 | 32.0 |
| ASDB592347 | 670 | 3.8 | 11.6g | 5.9 | 25.0 | 48.0 |

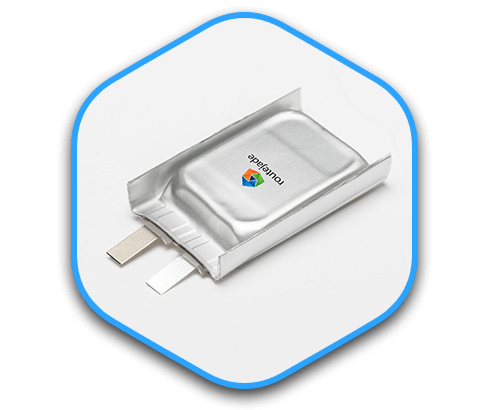

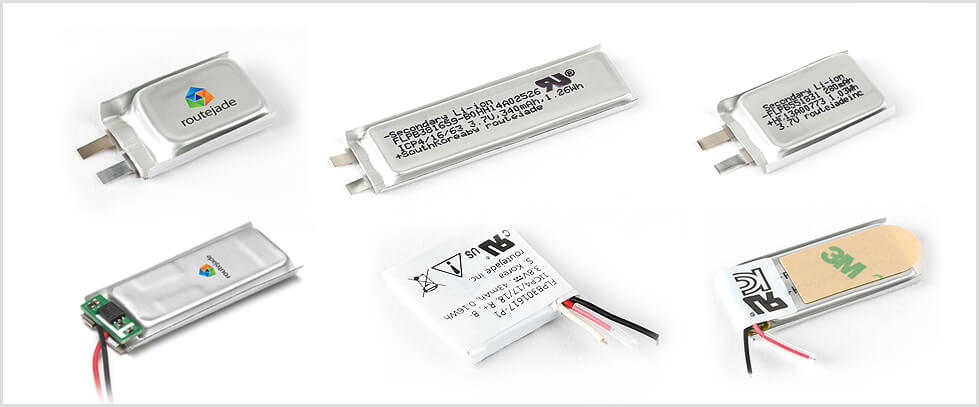

FLPB
Flexible Lithium-ion Polymer Battery
As the energy solution for tiny sized IT/Mobile devices, FLPB series are developed to be suitable for a various devices like headset, HMD, Activity tracker and it’s applicable to diverse wearable applications.
FLPB (Pouch battery series)
| Model | Capacity (mAh) | Voltage (V) | Weight /Max. | Dimensions(mm) | ||
|---|---|---|---|---|---|---|
| T | W | L | ||||
| FLPB301220 | 48 | 3.7 | 1.2g | 3.0 | 12.8 | 20.0 |
| FLPB381220 | 68 | 3.7 | 1.6g | 3.8 | 13.0 | 20.0 |
| FLPB501220 | 85 | 3.7 | 2.0g | 4.8 | 13.0 | 20.0 |
| FLPB231723 | 95 | 3.87 | 1.8g | 2.1 | 17.5 | 24.4 |
| FLPB301031 | 76 | 3.8 | 1.8g | 3.0 | 10.2 | 29.1 |
| FLPB251630 | 100 | 3.8 | 2.1g | 2.6 | 16.7 | 29.1 |
| FLPB352030 | 200 | 3.8 | 3.7g | 3.2 | 20.2 | 29.4 |
| FLPB462536 | 450 | 3.8 | 8.0g | 4.4 | 25.5 | 35.1 |
| FLPB551831 | 300 | 3.7 | 6.0g | 5.2 | 20.0 | 31.5 |
